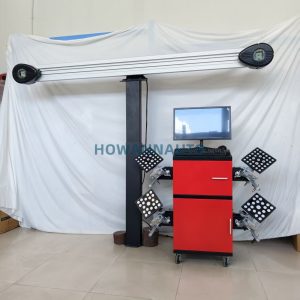

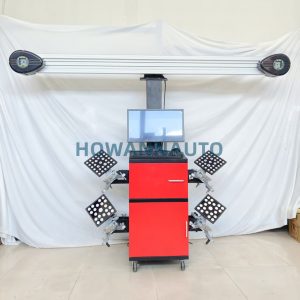

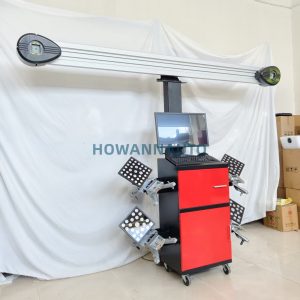

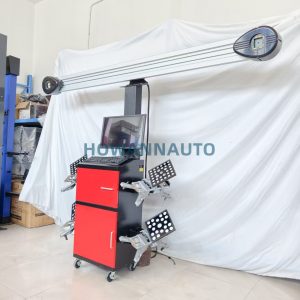

3D Wheel Alignment Machine | Professional Automotive Wheel Aligner

Featured

Brand: HOWANN

Part Number: W-05

Category: Inspection & Diagnostic Equipment

Availability: In Stock

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Measurement Accuracy: Camber ±0.01°, Toe ±0.01°, Caster ±0.02°
Target Type: Passive 3D target plates (no electronics)
Camera System: High-resolution dual CMOS camera beam
Power Supply: AC 110V/220V, 50/60Hz
Operating System: Windows-based multi-language interface

Full Specifications:

Rim Diameter Range	12" u2013 24"
Total Toe Range	u00b120u00b0
Camber Range	u00b110u00b0
Caster Range	u00b120u00b0
KPI / SAI Range	u00b120u00b0
Thrust Angle Range	u00b15u00b0
Display Monitor	32" HD LED Monitor
Data Communication	USB / High-Speed Camera Interface

Product Description

The HOWANN 3D Wheel Alignment Machine delivers high-precision, rapid, and reliable 4-wheel alignment for passenger cars, SUVs, and light commercial vehicles. Powered by high-resolution optical cameras and target plates with no electronic components, it eliminates traditional sensor calibration and cable wear. Designed for busy auto repair shops and tire centers, this aligner features real-time 3D tracking, intuitive software, and an extensive global vehicle database to ensure quick setup and accurate readings every time.

Key Features & Benefits

High-Precision 3D Optical Imaging: Dual high-definition camera system provides real-time measurement of camber, caster, toe-in, and kingpin inclination.
Maintenance-Free Target Plates: Durable, passive target disks contain no electronic components, batteries, or cables, eliminating calibration issues caused by accidental drops.
Comprehensive Vehicle Database: Pre-loaded with extensive OEM alignment specs for global car brands, with free periodic software updates.
Fast & User-Friendly Operation: Clear 3D graphic user interface guides technicians step-by-step through the measurement process in under 2 minutes.
Flexible Installation: Compatible with 4-post lifts, scissor lifts, and in-ground alignment pits.
