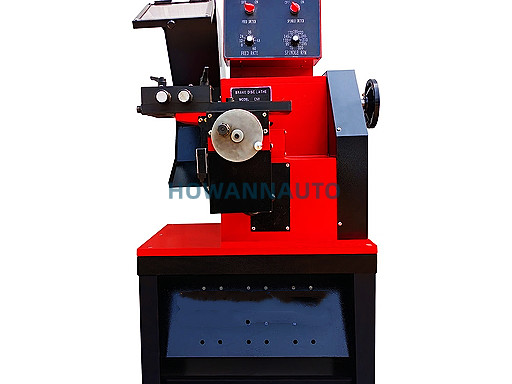

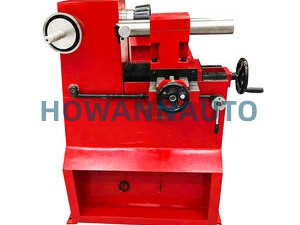

HOWANN C50 Heavy-Duty Bench-Style Brake Lathe Machine for Disc & Rotor

New Arrival
Brand: HOWANN
Part Number: B-C50
Category: Brake lathe
Availability: Need to Order

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Heavy-duty bench-style brake lathe for discs and rotors; Max rotor diameter: 400mm; Adjustable spindle and feed speeds; Robust cast-iron build for maximum cutting stability.

Full Specifications:
Machine Type Bench-Style Brake Disc / Rotor Lathe
Max. Rotor Diameter 400 mm (15.7")
Max. Rotor Thickness 45 mm (1.77")
Spindle Speed 70 / 100 / 140 RPM (Adjustable)
Feed Rate (Cross) 0.00-0.5 mm/rev (Variable)
Motor Power 0.75 kW / 1 HP
Packing Dimensions 980 u00d7 900 u00d7 1050 mm
Specification NameValueMachine TypeBench-Style Brake Disc / Rotor LatheMax. Rotor Diameter400 mm (15.7")Max. Rotor Thickness45 mm (1.77")Spindle Speed70 / 100 / 140 RPM (Adjustable)Feed Rate (Cross)0.00-0.5 mm/rev (Variable)Motor Power0.75 kW / 1 HPPacking Dimensions980 u00d7 900 u00d7 1050 mmNet Weight / Gross Weight 240 kg / 280 kg

Product Description

Maximize your automotive service bay's capability with the HOWANN C50 Heavy-Duty Bench-Style Brake Lathe. Engineered for exceptional precision and reliability, the C50 is designed specifically for fast and accurate resurfacing of brake discs and rotors on passenger cars and light trucks. Built with a rigid cast-iron frame to effectively absorb vibrations and eliminate chatter, this compact yet powerful bench lathe delivers factory-quality finishes that ensure quiet, smooth braking performance every time. Equip your garage with HOWANN for superior machining efficiency and long-lasting durability.

Key Features & Benefits

  • Compact Bench-Style Design: Space-saving configuration makes it ideal for professional auto repair shops, tire centers, and brake service bays of any size.

  • High-Precision Resurfacing: Advanced spindle and dual independent tool feeds deliver ultra-smooth surface finishes that meet or exceed OEM specifications.

  • Rigid Cast-Iron Construction: Heavy-duty structural build absorbs vibrations and minimizes chatter to guarantee high-accuracy cutting results.

  • User-Friendly Operation: Ergonomically arranged controls allow technicians to set up and perform cuts quickly with minimal training required.

  • Efficient Workflow: Streamlines rotor machining tasks, significantly reducing service time and boosting overall shop productivity.

  • Enhanced Safety Standards: Integrated with protective shields and emergency controls to ensure a safe daily working environment.
