4000kg 3500kg Movable Hydraulic Scissor Car Lift

Featured
Brand: HOWANN
Part Number: L-02
Availability: In Stock

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Full Specifications:
Parameters Details
Model Underground Scissor Car Lift
Lifting Capacity 4000kg / 4.0T (optional 3.5T / 5.0T)
Max Lifting Height 1800mm (adjustable up to 1950mm)
Min Lifting Height 80mm (flush with ground when retracted, space-saving)
Lifting Speed 0.12m/s (no-load), 0.09m/s (full-load)
Descent Speed 0.15m/s (controlled descent, safe and stable)
Power Supply 220V / 380V (50/60Hz), single/three phase optional
Motor Power 2.2kW (high-efficiency copper core motor)
Hydraulic Pressure 16MPa (double-cylinder hydraulic system, synchronous lifting)
Platform Size (Lu00d7W) 2800u00d7800mm (adjustable according to vehicle size)
Installation Type In-ground (recessed) / Surface-mounted (optional)
Net Weight 750kg u2013 900kg

Product Description

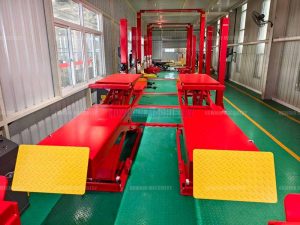

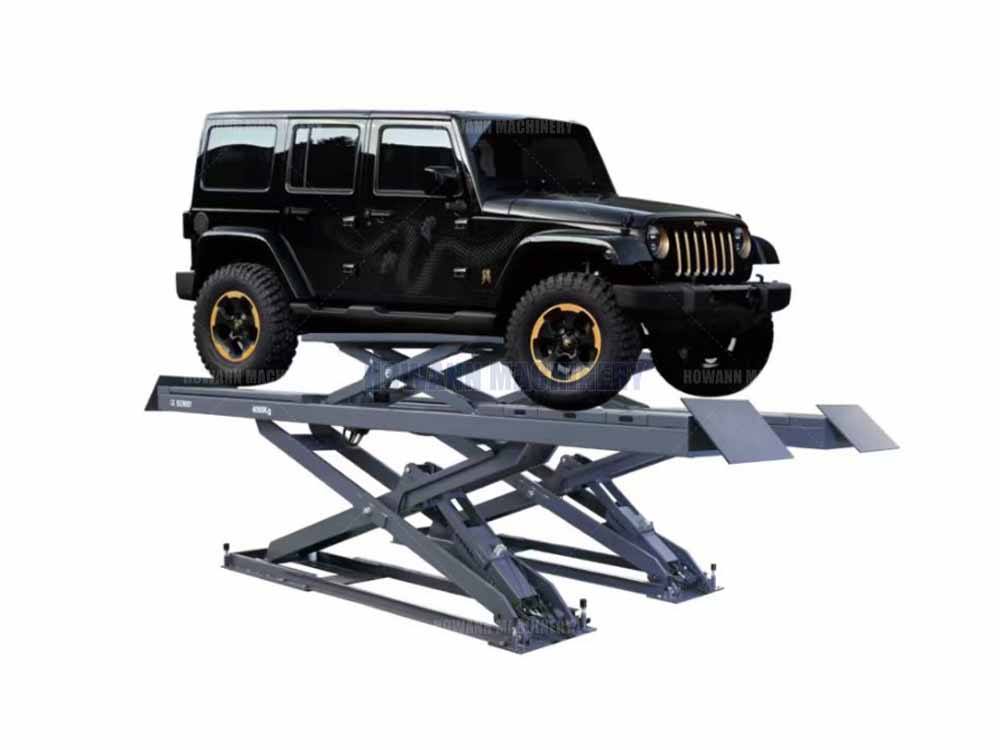

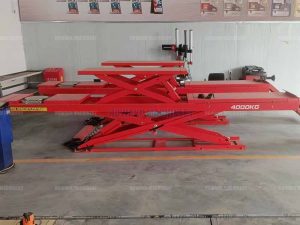

This underground scissor lift (also known as in-ground scissor lift ) is a professional hydraulic lifting equipment designed for auto repair, wheel alignment, and chassis maintenance. As an essential tool for 4S shops, auto repair garages, and tire service centers, it features an in-ground hidden design that saves workshop space while providing stable and safe lifting performance. It is suitable for lifting passenger cars, SUVs, and light commercial vehicles, meeting global export requirements and becoming a preferred lifting solution for professional mechanics worldwide.

Key Features & Benefits

1. Space-Saving Underground Hidden Design
2. High Precision & Suitable for Wheel Alignment
3. Safe & Stable Lifting Performance
4. Durable & Low Maintenance
5. Easy Operation & High Efficiency
