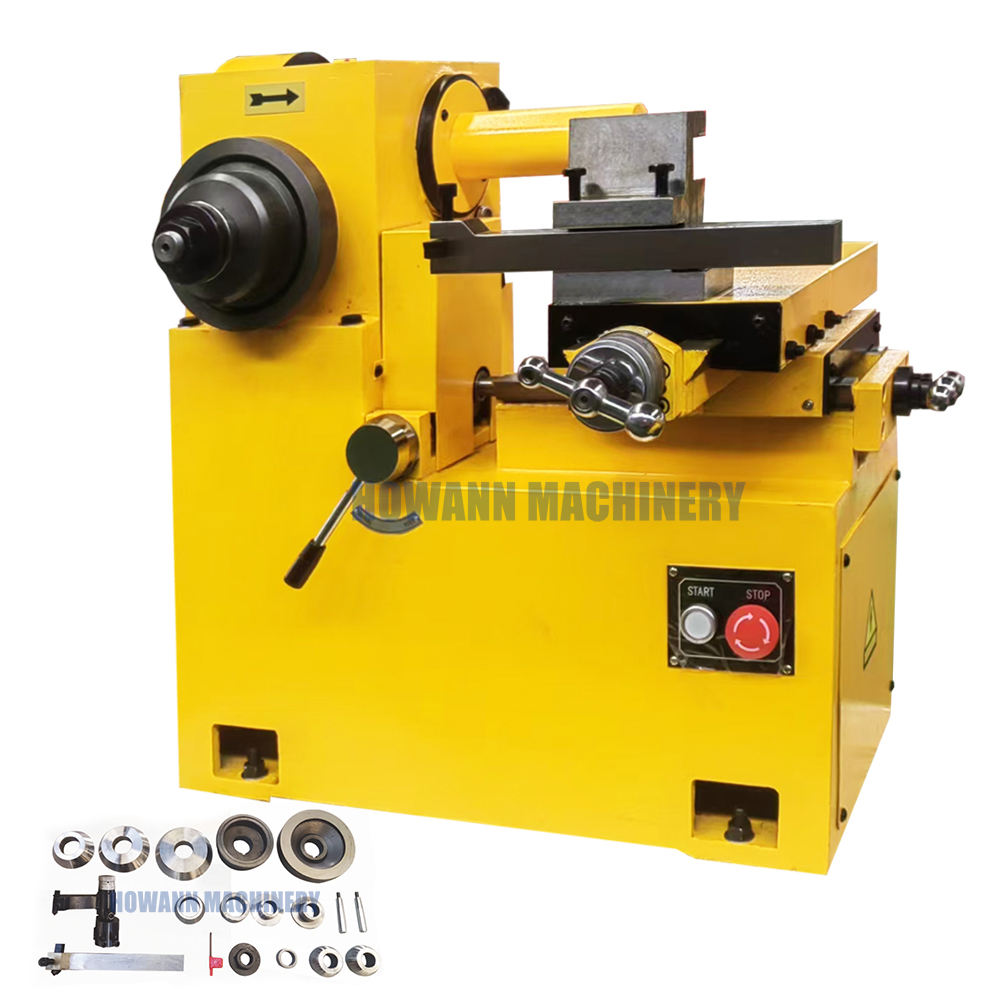

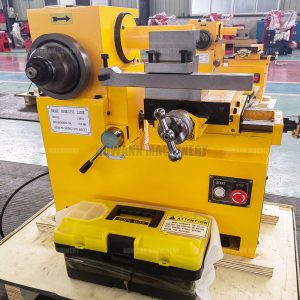

C9335 brake rotor lathe machine for garage

C9335 Disc & Drum Brake Lathe Machine for Car and Light Truck Repair

Featured

Brand: HOWANN

Part Number: C9335

Availability: In Stock

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Max. Processing Diameter: Drum: 350mm / Disc: 350mm
Spindle Speed: 75/130 rpm (Dual Speed Control)
Motor Power: 0.75 kW / 1.1 kW (Optional)

Full Specifications:

Processing Range (Drum)	u03a6180 - u03a6350 mm
Processing Range (Disc)	u2264 u03a6350 mm
Spindle Speed	75 / 130 rpm
Max. Tool Travel	100 mm
Feed Rate (Variable)	0 - 0.15 mm/r
Motor Power	0.75 kW
Power Supply	110V/220V/380V (Customizable)
Package Dimensions	850 u00d7 750 u00d7 800 mm
Net / Gross Weight	220 kg / 260 kg

Product Description

The C9335 Brake Lathe Machine is a highly efficient and precision-engineered solution designed for automotive workshops and garage service centers. It is specifically developed to resurface brake discs (rotors) and brake drums of cars, SUVs, and light trucks. Featuring a dual-sided cutting structure and an infinitely variable feed rate, the C9335 ensures a flawless, mirror-like finish on every brake components, eliminating brake pedal pulsation and noise.

Key Features & Benefits

2-in-1 Dual Functionality: Efficiently handles both brake discs and brake drums, saving workshop space and investment costs.
Simultaneous Double-Sided Cutting: Equipped with twin cutters for simultaneous machining of both sides of the brake disc, drastically reducing processing time and improving efficiency.
Infinitely Variable Feed Speed: Allows operators to adjust the feed rate effortlessly to achieve the optimal surface finish for different materials.
High Precision & Rigidity: Built with a heavy-duty cast iron body and precision-ground components to eliminate vibration and ensure strict tolerance control.
User-Friendly Operation: Ergonomically designed control layout and easy adapter changeovers, allowing even novice technicians to operate with minimal training.
