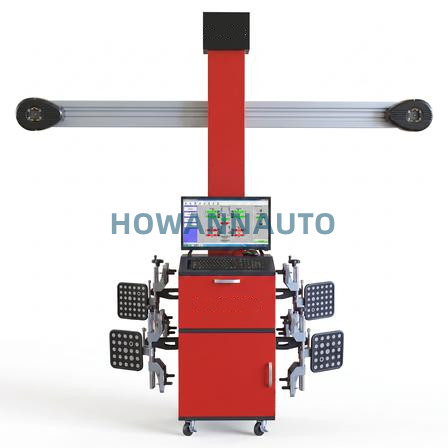

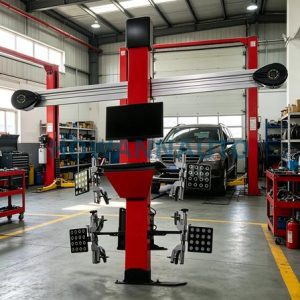

HOWANN 3D wheel alignment machine in auto repair shop

HOWANN 3D Wheel Alignment Machine | High-Precision Digital Automotive Alignment System

Featured

Brand: HOWANN

Part Number: W-03zhe

Category: Inspection & Diagnostic Equipment

Availability: In Stock

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Measurement Method: 3D Optical Imaging

Camera Resolution: High-Definition Dual Camera

Target Type: Passive, battery-free target plates

Display: High-resolution LED monitor with intuitive 3D graphics

Software: Multilingual, supports automatic database updates

Full Specifications:

Total Toe Range	u00b120.0u00b0 (Accuracy: u00b10.02u00b0)
Camber Range	u00b110.0u00b0 (Accuracy: u00b10.02u00b0)
Caster Range	u00b120.0u00b0 (Accuracy: u00b10.05u00b0)
Kingpin Inclination (SAI)	u00b120.0u00b0 (Accuracy: u00b10.05u00b0)
Thrust Angle Range	u00b15.0u00b0 (Accuracy: u00b10.01u00b0)
Wheel Size Capacity	12" u2013 24" (Expandable clamps available)
Operating Voltage	110V / 220V (50/60Hz)
Operating Temperature	-10u00b0C to +50u00b0C

Product Description

The HOWANN 3D Wheel Alignment Machine offers industry-leading accuracy and speed for modern automotive repair shops and tire service centers. Utilizing high-resolution digital cameras and durable target plates, this 3D wheel aligner provides precise, real-time measurement of camber, caster, toe, and kingpin inclination. Built with high-durability components and intuitive software, it significantly increases shop throughput while delivering reliable, repeatable diagnostic results.

Key Features & Benefits

High-Precision 3D Imaging Technology: High-definition optical camera system ensures accurate measurements within seconds, eliminating traditional sensor calibration hassles.
Passive Target Plates (No Electronics): Durable, lightweight target plates require no electronic components, batteries, or cables, minimizing downtime and maintenance costs.
Comprehensive Vehicle Database: Pre-loaded with thousands of international car models, supporting free regular software updates to cover the latest vehicles.
User-Friendly Software Interface: Step-by-step 3D animations guide technicians through the alignment process, speeding up operation and reducing technician training time.
Comprehensive Alignment Reports: Instantly generates clear, visual before-and-after alignment printouts/PDFs to build customer trust and drive upsells.
