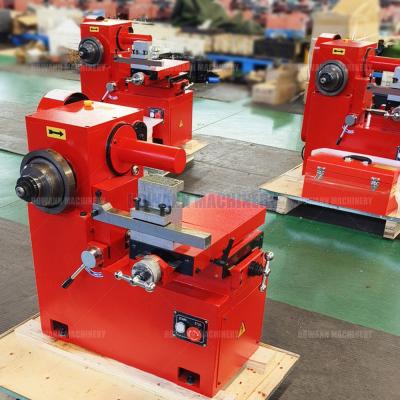

HOWANN C-45 Heavy Duty Brake Lathe Machine for Brake Disc and Drum

New Arrival

Brand: HOWANN

Part Number: B-C45

Availability: Need to Order

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Max Rotor Diameter: 550 mm
Max Drum Diameter: 750 mm
Spindle Speed: 70 - 150 RPM

Full Specifications:

Machine Type	Heavy-Duty Brake Disc & Drum Lathe
Max Rotor Diameter	550 mm
Max Drum Diameter	750 mm
Max Rotor Thickness	40 mm
Spindle Speed	70 / 110 / 150 RPM
Feed Rate	0.06 - 0.15 mm/rev
Motor Power	0.75 kW (1 HP)
Net Weight	260 kg

Product Description

The HOWANN C-45 is a high-performance, heavy-duty brake lathe engineered for professional automotive repair shops and machine centers. It provides exceptional precision and stability for resurfacing brake discs, rotors, and drums, ensuring restored braking efficiency and safety.

Key Features & Benefits

Heavy-duty rigid structure designed to absorb vibration and deliver superior surface finishes.
Dual-operation capability for efficient machining of both brake discs and brake drums.
Precision twin-cutter design allows simultaneous and accurate cutting on both sides of rotors.
Adjustable spindle speeds and feed rates to accommodate various vehicle specifications.
Ergonomic control interface for simplified operation and enhanced workshop productivity.
