T8018C High Precision Vertical Cylinder Boring Machine

Featured
Brand: HOWANN
Part Number: T-02
Category: Chassis & Brake Repair Equipment
Availability: In Stock

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

  • Boring Diameter: φ30 - φ180 mm

  • Max. Boring Depth: 450 mm

  • Spindle Speed: 200/400 rpm (variable options)

Full Specifications:
Item Parameter
Boring Diameter Range u03c630 u2013 u03c6180 mm
Max. Boring Depth 450 mm
Spindle Speed (2 steps) 200, 400 r/min
Spindle Feed 0.12 mm/r
Spindle Rapid Travel 1.8 m/min
Max. Travel of Spindle 500 mm
Motor Power 1.1 kW
Machine Weight Approx. 850 kg

Product Description

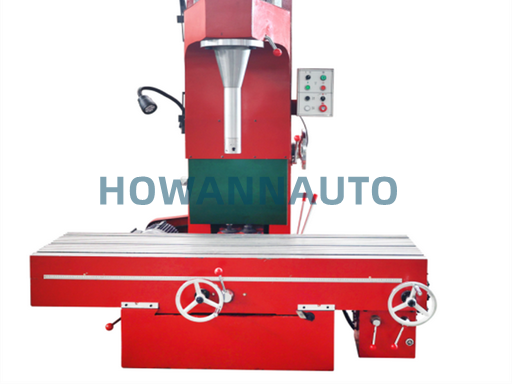

The T8018C Cylinder Boring Machine is primarily designed for boring the cylinders and cylinder liners of automobile and tractor engines; it is also suitable for the precision hole machining of other mechanical components. Featuring a vertical design with high structural rigidity, this machine effectively ensures the roundness and straightness of the machined cylinders, making it an ideal choice for large-scale repair shops and engine refurbishment centers.

Key Features & Benefits

High-Precision Machining: Utilizes a high-precision spindle to ensure that surface roughness and geometric accuracy after boring meet industry standards.

Multi-Stage Feed Adjustment: Features multiple longitudinal feed speeds to accommodate the machining requirements of various materials and bore diameters.

Convenient Operation: Equipped with a rapid centering device to reduce alignment time and enhance operational efficiency.

Robust Stability: The machine body is constructed from cast iron and subjected to aging treatment, minimizing vibration and enhancing durability.
