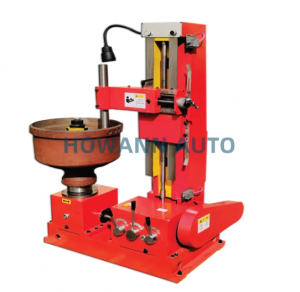

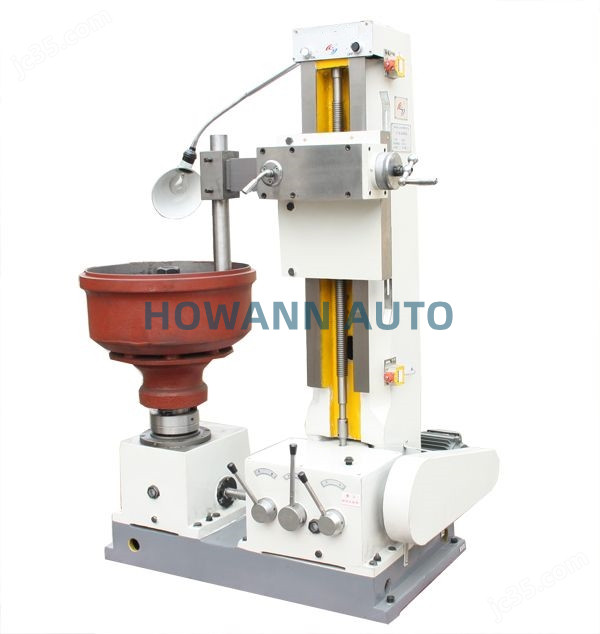

T8362 Vertical Boring Machine – Heavy-Duty Brake Drum & Hub Boring

Featured
Brand: HOWANN
Part Number: B-02
Category: Brake lathe
Availability: Need to Order

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Full Specifications:
Parameter Specification
Model T8362 Vertical Brake Drum Boring Machine
Max boring diameter 620 mm
Minimum Machining Diameter 180 mm
Workpiece height range 0 u2013 450 mm
Spindle motor power 4 kW / 5.5 HP
Spindle speed 35 u2013 220 rpm (stepless or 3-step)
Feed rate (manual / auto) 0.1 u2013 0.2 mm/rev
Vertical travel 450 mm
Machine weight u2248 1100 kg
Power supply 380V / 50Hz (customizable)

Product Description

The T8362 vertical boring machine is a professional-grade boring solution designed for brake drums, brake discs, and wheel hubs of heavy-duty trucks, buses, and commercial vehicles.

With a vertical spindle design, the machine ensures excellent rigidity, easy chip evacuation, and convenient workpiece clamping. It is widely used in automotive repair workshops, axle manufacturing lines, and fleet maintenance centers.

The T8362 delivers high boring accuracy, fast setup, and durable construction, making it the preferred choice for drum and disc resurfacing.

Key Features & Benefits

✅ High boring accuracy – Repeatable precision within ±0.02 mm, ensuring smooth braking performance.

✅ Vertical design gain – No chip accumulation on boring surface; easier for operator to load/unload heavy drums.

✅ Heavy-duty cast iron structure – Vibration damping for better surface finish and longer tool life.

✅ Simple operation – No complex CNC programming; ideal for workshops with different skill levels.

✅ Versatile application – Works on brake drums, brake discs, flywheels, and wheel hubs.

✅ Easy maintenance – Open construction, standard tools, and widely available parts.
