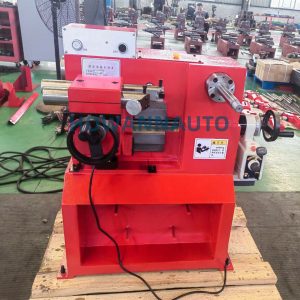

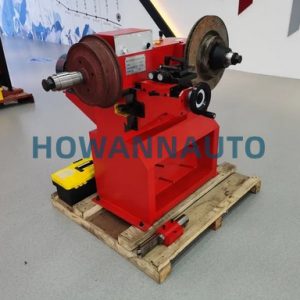

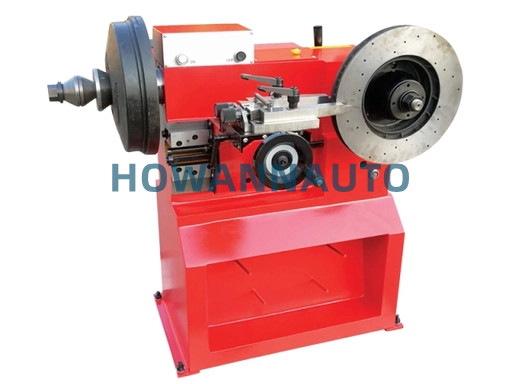

T8445 Heavy Duty Brake Drum/Disc Cutting Lathe Machine for Cars and Trucks

Featured

Brand: HOWANN

Part Number: T8445

Category: Brake lathe

Availability: Need to Order

Interested in this product?

Send us an inquiry for pricing and availability.

Specifications

Quick Specs:

Max. Drum Diameter: 450 mm
Max. Disc Diameter: 400 mm
Spindle Speed: 30 / 52 / 85 rpm (3 steps)
Motor Power: 1.1 kW

Full Specifications:

Processing Diameter (Drum)	180 - 450 mm
Processing Diameter (Disc)	<400 mm
Spindle Speed	30 / 52 / 85 r/min
Tool Post Travel	170 mm
Feed Rate	0.16 mm/r
Motor Power	1.1 kW
Power Supply	220V/380V (50Hz/60Hz)
Packing Size	910 u00d7 820 u00d7 1250 mm
Net / Gross Weight	320 kg / 360 kg

Product Description

The T8445 Brake Lathe is a highly efficient and precise machining equipment designed for repairing brake drums and brake discs of cars, SUVs, and medium-sized trucks. Featuring a dual-structure capability, it allows for the simultaneous or independent resurfacing of brake discs and drums, making it an essential, versatile tool for professional automotive repair shops and garages.

Key Features & Benefits

Dual-Function Capability: Expertly handles both brake discs and brake drums, offering maximum versatility for diverse vehicle servicing.
High Precision & Efficiency: Equipped with optimized feed rates and spindle speeds to deliver a flawless, ultra-smooth surface finish that eliminates brake pedal pulsation.
Heavy-Duty Construction: Built with high-grade cast iron and rigid structural components to minimize vibration, ensure stability, and extend machine lifespan.
User-Friendly Operation: Features intuitive controls and an ergonomic layout, allowing mechanics to set up and complete resurfacing jobs quickly and safely.
Adjustable Feed Rate: Supports variable or step-less feeding options to match different material hardness and finishing requirements.
