Vehicle Brake Disc/Drum Lathe for Car Braking System Repair
Interested in this product?
Send us an inquiry for pricing and availability.
Specifications
Parameter Details
Processing Diameter (Brake Drum) φ180 – φ350 mm
Processing Diameter (Brake Disc) φ180 – φ350 mm (up to 400mm with accessory)
Spindle Speed 75 / 130 r/min (2-speed gearbox)
Max. Tool Travel (Axial) 100 mm
Feed Rate 0.16 mm/rev (mechanical auto-feed)
Main Motor Power 0.75 kW / 1.1 kW (220V, 1PH, 50/60Hz)
Overall Dimensions (L×W×H) 700*580*650
Net / Gross Weight 200 kg / 260 kg
Machine Structure High-strength cast iron bed & headstock
Machining Accuracy ≤0.02 mm flatness error
Product Description

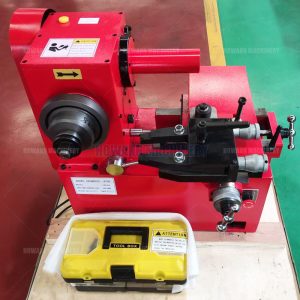

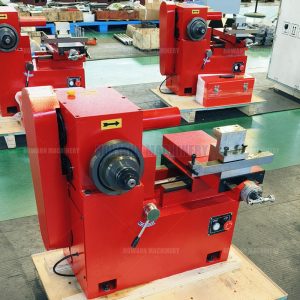

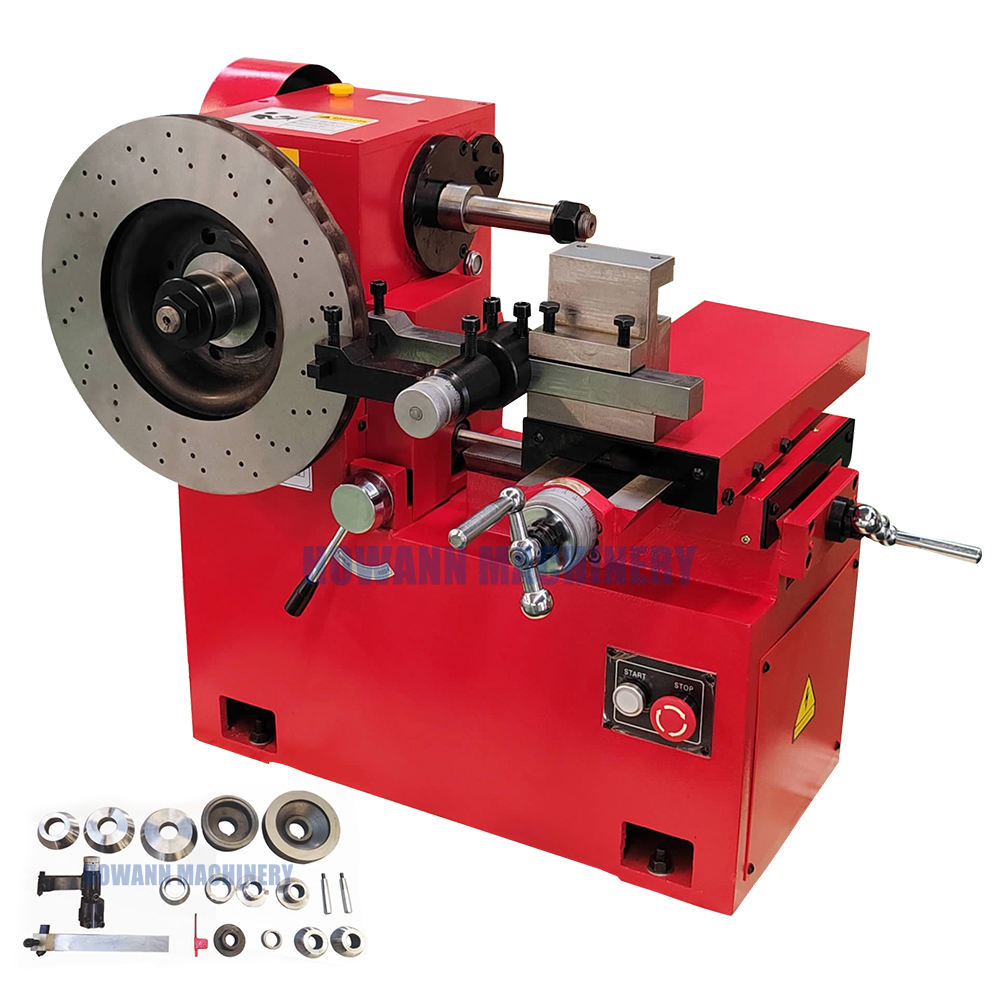

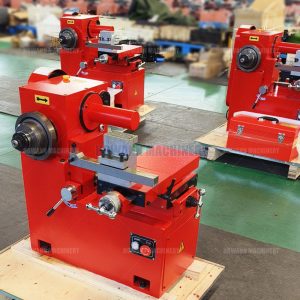

The C9335 is a heavy-duty, precision brake lathe engineered for resurfacing automotive brake drums and discs. Designed for auto repair shops and 4S service centers, it efficiently restores worn braking surfaces to OEM standards, eliminating pulsation, noise, and vibration. Capable of processing drums (180–350mm) and discs (180–350mm).
Built with a rigid cast-iron frame for stability and accuracy, the C9335 combines easy operation, compact design, and durable construction. It significantly cuts repair time, lowers parts costs, and boosts workshop efficiency—making it the ideal choice for reliable, cost-effective brake component restoration.
Key Features & Benefits
1.Dual-Purpose Machining
One machine handles both brake drums and brake discs, with quick changeover between operations, maximizing shop versatility.
2.High Precision & Stability
Robust cast-iron construction minimizes vibration; precision spindle and slideways ensure superior surface finish and dimensional accuracy.
3.Easy Operation
User-friendly controls, manual/auto feed options, and clear adjustment dials for depth and speed. Minimal training required.
4.Efficient & Time-Saving
Two-speed spindle and automatic feed enable fast, consistent resurfacing. Complete repair in ~45–60 minutes vs. 3+ hours for full replacement.
5.Durable & Low Maintenance
Gear-driven transmission (reliable, long-life); enclosed, lubricated gearbox; hardened tool posts for extended wear.
